Mirror systems & fittings

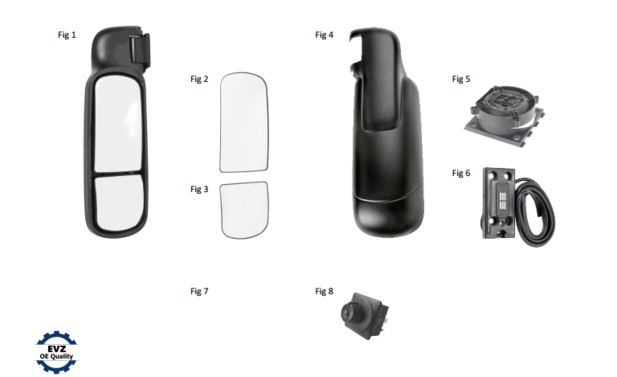

Fig.

Description

Volt

Plug

Brand / Model

EVZ number

1

Complete mirror system heated LEFT

Electrically adjustable side-view mirror

Manually adjustable wide-angle mirror

24V

-

BYD K9UD - B13E01

EP 3700010

2

Glass unit heated LEFT

Convex R1200

24V

-

BYD K9UD - B13E01

EP 3730000

3

Wide-angle glass unit heated LEFT

Extremely convex R300

24V

-

BYD K9UD - B13E01

EP 3730010

4

Mirror cover hanging LEFT

-

-

BYD K9UD - B13E01

EP 3760000

5

Engine unit LEFT/RIGHT

24V

-

BYD K9UD - B13E01

EP 3760030

6

Mounting wedge for chassis LEFT

Built-in plug with 250cm cable

-

-

BYD K9UD - B13E01

EP 3760080

7

Cable with 6 pole socket module

-

-

BYD K9UD - B13E01

EP 3760380

8

Mirror switch for 2 mirrors

-

-

BYD K9UD - B13E01

EP 8761090

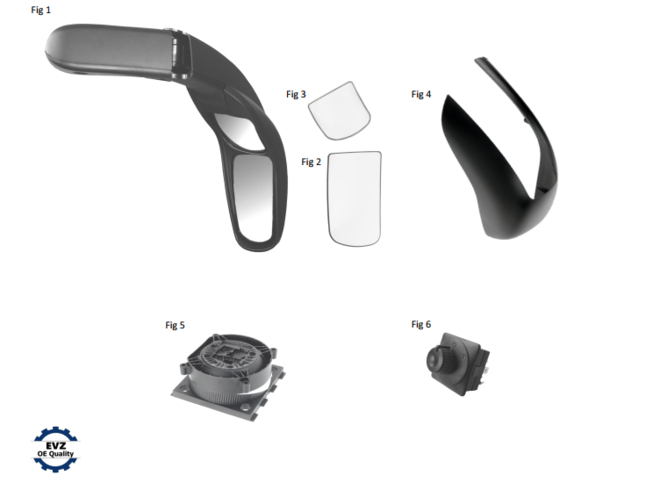

Fig.

Description

Volt

Plug

Brand / Model

EVZ number

1

Complete mirror system heated RIGHT

Electrically adjustable side-view mirror

Manually adjustable wide-angle mirror

Manually retractable side-view mirror

24V

-

BYD K9UD - B13E01

EP 2700110

2

Glass unit heated RIGHT

Convex R1200

24V

-

BYD K9UD - B13E01

EP 3730100

3

Wide-angle glass unit heated RIGHT

Extremely convex R300

24V

-

BYD K9UD - B13E01

EP 3730110

4

Mirror cover RIGHT

-

-

BYD K9UD - B13E01

EP 3760100

5

Engine unit LEFT/RIGHT

24V

-

BYD K9UD - B13E01

EP 3760030

6

Mirror switch for 2 mirrors

-

-

BYD K9UD - B13E01

EP 8761090

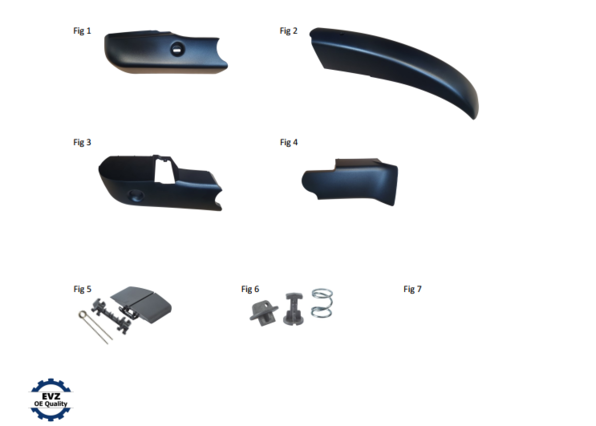

Fig.

Description

Volt

Plug

Brand / Model

EVZ number

1

Cover for mirror arm

Rear/Upper

-

-

BYD K9UD - B13E01

EP 3760170

2

Cover for mirror arm

Front/Upper

-

-

BYD K9UD - B13E01

EP 3760150

3

Cover for mirror arm

Rear/Lower

-

-

BYD K9UD - B13E01

EP 3760180

4

Cover for mirror arm

Front/Lower

-

-

BYD K9UD - B13E01

EP 3760160

5

Hinge kit with fitting and lock spring

-

-

BYD K9UD - B13E01

EP 3760140

6

Adjusting wrench kit with nut and spring

-

-

BYD K9UD - B13E01

EP 3760190

7

Connection cable 605cm.

-

-

BYD K9UD - B13E01

EP 3760370
