Mirror systems & fittings

Fig.

Description

Volt

Plug

Brand / Model

EVZ number

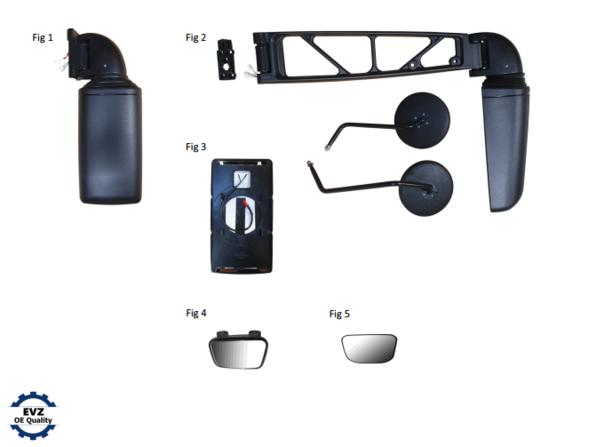

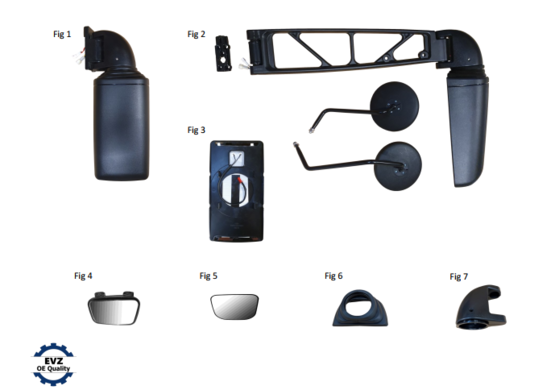

1

Complete mirror system Left
Electrically adjustable side mirror with heating

24V

-

Yutong

E12-E15-U12-U15

EP 4702100

2

Complete mirror system incl. mounting wedge for chassis Right
Electrically adjustable side mirror with heating
Supplied with 2 additional wide-angle mirrors

24V

-

Yutong

E12-E15-U12-U15

EP 4702110

3

Mirror glass unit with heating Left/Right
Convex R1200

24V

-

Yutong

E12-E15-U12-U15

EP 4732100

4

Additional wide-angle mirror. Strongly convex R240 Left
Without heating.
Mounted on the lower edge of the mirror housing

-

-

Yutong

E12-E15-U12-U15

EP 5721000

4

Additional wide-angle mirror. Strongly convex R240 Right
Without heating.
Mounted on the lower edge of the mirror housing

-

-

Yutong

E12-E15-U12-U15

EP 5721010

5

Wide-angle mirror glass unit R240 Left/Right
Genuine mirror glass! 165x93 mm

-

-

Yutong

E12-E15-U12-U15

EP 5730040

5

Wide-angle mirror glass unit R240 with heating Left/Right
Genuine mirror glass! 165x93 mm

24V

-

Yutong

E12-E15-U12-U15

EP 8730040

6

Rubber bellows for side mirror Left/Right

-

-

Yutong

E12-E15-U12-U15

EP 4762100

7

Cover set for swivel bracket Left/Right

-

-

Yutong

E12-E15-U12-U15

EP 4762110

Fig.

Description

Volt

Plug

Brand / Model

EVZ number

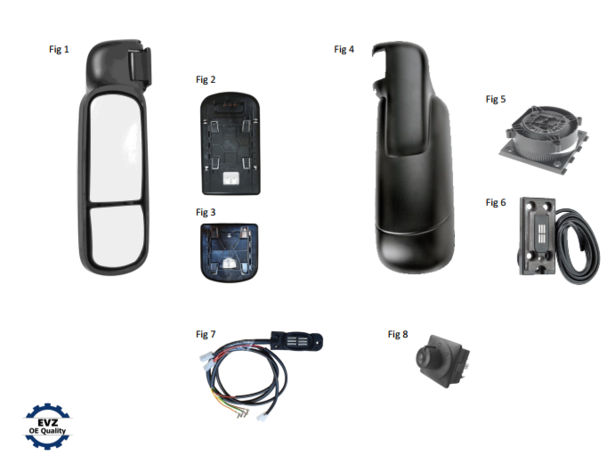

1

Complete mirror system with heating - Left
Electrically adjustable side mirror
Manually adjustable wide-angle mirror

24V

-

Yutong E9

Yutong U12

EP 3700010

EP 2700100

2

Mirror glass unit with heating - Left
Convex R1200

24V

-

Yutong E9-U12

EP 3730000

3

Wide-angle mirror glass unit with heating - Left
Extremely convex R300

24V

-

Yutong E9-U12

EP 3730010

4

Mirror cover, hanging - Left

-

-

Yutong E9-U12

EP 3760000

5

Motor unit Left/Right

24V

-

Yutong E9-U12

EP 3760030

6

Mounting wedge for chassis - Left
Integrated connector with 250 cm cable

-

-

Yutong E9-U12

EP 3760080

7

Cable with 6-pin connector module

-

-

Yutong E9-U12

EP 3760380

8

Mirror control switch for 2 mirrors

-

-

Yutong E9-U12

EP 8761090

Fig.

Description

Volt

Plug

Brand / Model

EVZ number

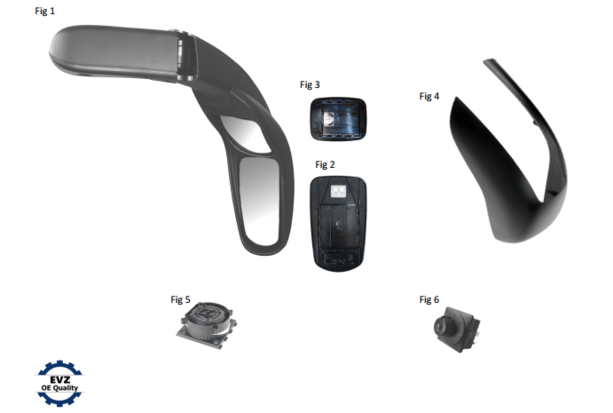

1

Complete mirror system with heating - Right
Electrically adjustable side mirror
Manually adjustable wide-angle mirror
Manually foldable side mirror

24V

-

Yutong E9

EP 2700110

1

Complete mirror system with heating - Right
Electrically adjustable side mirror
Manually adjustable wide-angle mirror
Electrically foldable side mirror

24V

-

Yutong U12

EP 2700130

2

Mirror glass unit with heating - Right
Convex R1200

24V

-

Yutong E9-U12

EP 3730100

3

Wide-angle mirror glass unit with heating - Right
Extremely convex R300

24V

-

Yutong E9-U12

EP 3730110

4

Mirror cover - Right

-

-

Yutong E9-U12

EP 3760100

5

Motor unit Left/Right

24V

-

Yutong E9-U12

EP 3760030

6

Mirror control switch for 2 mirrors

-

-

Yutong E9-U12

EP 8761090

Fig.

Description

Volt

Plug

Brand / Model

EVZ number

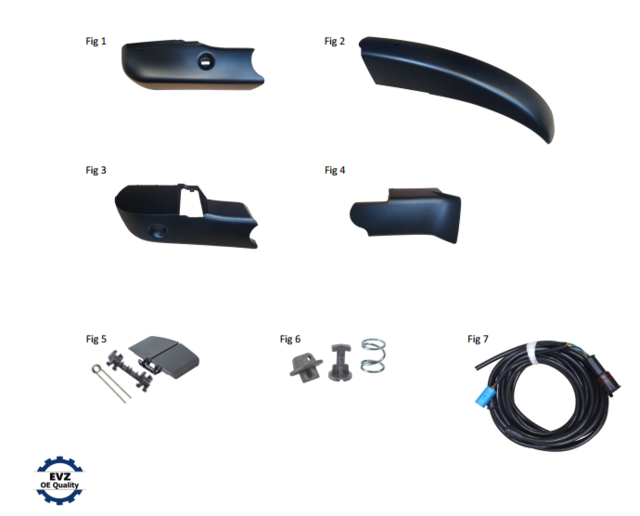

1

Cover for mirror arm
Rear / Upper

-

-

Yutong E9-U12

EP 3760170

2

Cover for mirror arm
Front / Upper

-

-

Yutong E9-U12

EP 3760150

3

Cover for mirror arm
Rear / Lower

-

-

Yutong E9-U12

EP 3760180

4

Cover for mirror arm
Front / Lower

-

-

Yutong E9-U12

EP 3760160

5

Hinge kit with bracket and locking spring

-

-

Yutong E9-U12

EP 3760140

6

Adjustment key kit with bolt and spring

-

-

Yutong E9-U12

EP 3760190

7

Connection cable 605 cm

-

-

Yutong E9-U12

EP 3760370
