Turbo & Intercooler silicone hoses

Certified operating temperatures from -50°C to+230°C

SAE J20R1 Class A Certified

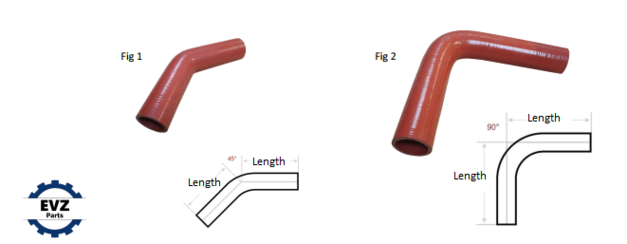

Fig.	Description	Inner Ø	Length	Layers	Max Pressure	EVZ number
1	Silicone Elbow 45° for Turbo	45 MM	155/155 MM	6	-	EP 9845428
2	Silicone Elbow 90° for Turbo	45 MM	240/240 MM	6	-	EP 9845928

Fig.	Description	Inner Ø	Length	Layers	Max Pressure	EVZ number
3	Silicone Hose for Intercooler	88 MM	140 MM	-	-	1-488368
4	Silicone Hose for Intercooler	100 MM	250 MM	-	-	5-0020945282
5	Silicone Hose Reducer for Intercooler	100/84 MM	192 MM	-	-	DV 019900051S
