Side-view mirrors & fittings

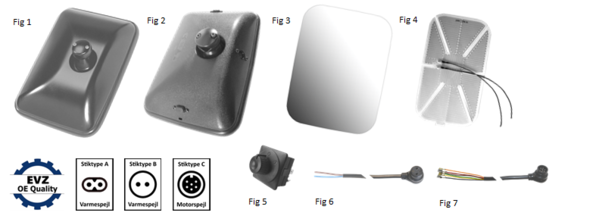

Fig.

Description

Volt

Plug

EVZ number

 1

Heating mirror, manually adjustable, left/right

24V

B

EP 4710010

 1

Heating mirror, manually adjustable, left/right

24V

B

EP 4710030

 2

Main mirror, remote controlled, left/right

24V

C/A

EP 4710000

 1

Main mirror, remote controlled, left/right

24V

C

EP 4710020

 3

Spare glass, left/right

-

-

EP 4730000

 3

Spare glass with heating foil, left/right

24V

-

EP 4730010

 4

Heating foil, 30W, left/right

24V

-

EP 4740010

1/2

Engine unit, horisontal action

24V

-

EP 4760000

1/2

Engine unit, vertical action

24V

-

EP 4760010

5

Mirror switch for 2 mirrors

-

-

EP 8761090

 6

Cable for heating mirror with 2 pole plug

-

B

EP 8761030

 7

Cable for main mirror with 6 pole plug

-

C

EP 8761050

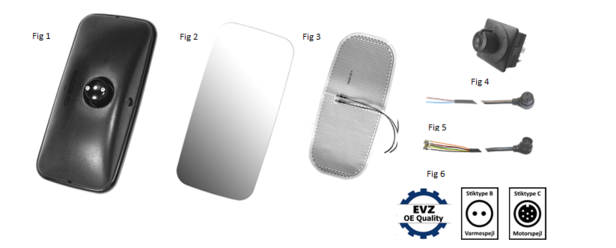

Fig.

Description

Volt

Plug

EVZ number

 1

Heating mirror, manually adjustable, left/right

24V

B

EP 4711010

 1

Main mirror, remote controlled, left/right

24V

C

EP 4711000

 2

Spare glass, left/right

-

-

EP 4731000

 2

Spare glass with heating foil, left/right

24V

-

EP 4731010

 3

Heating foil, 30W, left/right

24V

-

EP 4740020

1

Engine unit horisontal action

24V

-

EP 4760000

1

Engine unit vertical action

24V

-

EP 4760010

4

Mirror switch for 2 mirrors

-

-

EP 8761090

 5

Cable for heating mirror with 2 pole plug

-

B

EP 8761030

 6

Cable for main mirror with 6 pole plug

-

C

EP 8761050

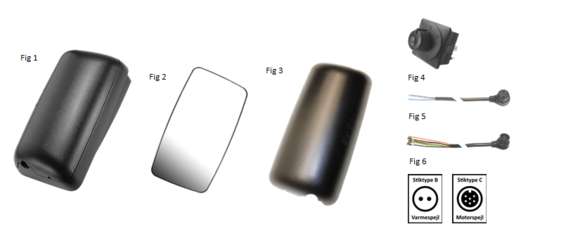

Fig.

Description

Volt

Plug

EVZ number

1

Heating mirror, manually adjustable, left

24V

B

EP 8710030

1

Main mirror, remote controlled, left (right)

24V

C

EP 8710000

1

Main mirror, remote controlled, right (left)

24V

C

EP 8710010

2

Glass unit heated left/right

24V

-

EP 8730000

3

Mirror cover left/right

-

-

EP 8760030

1

Engine unit with alu plate, left/right

24V

-

EP 8761110

4

Mirror switch for 2 mirrors

-

-

EP 8761090

5

Cable for heating mirror with 2 pole plug

-

B

EP 8761030

6

Cable for main mirror with 6 pole plug

-

C

EP 8761050
