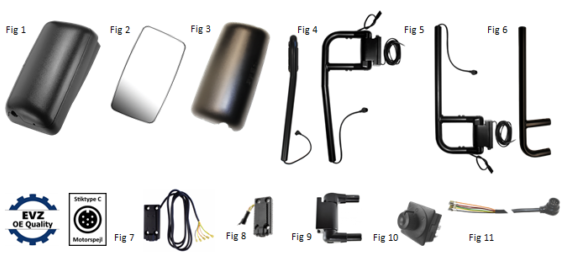

Volvo B7RLE-60 Säffle
Remote controlled mirrors, mirror arms & fittings
Fig. |
Description |
EVZ number |
1 |
Main mirror remote controlled left/right |
|
2 |
Glass unit heated left/right |
|
3 |
Mirror cover left/right |
|
4 |
Mirror arm 28mmØ left 60° angle |
|
5 |
Mirror arm 28mmØ left 90° angle |
|
6 |
Mirror arm 28mmØ left |
|
7 |
Mounting wedge for chassis right |
|
8 |
Mounting wedge for chassis left/right |
|
9 |
Lower holder with fitting left/right |
|
1/2 |
Engine unit with alu plate |
|
10 |
Mirror switch for 2 mirrors |
|
11 |
Cable for main mirror with 6 pole plug |

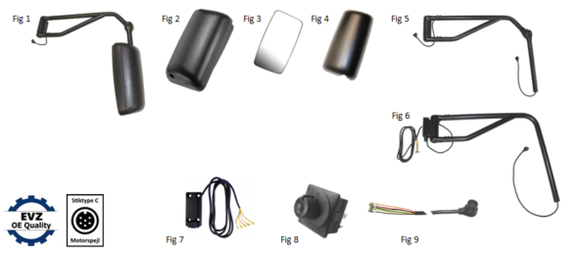

Volvo B7RLE-60 Säffle
Remote controlled mirrors, mirror arms & fittings
Fig. |
Description |
EVZ number |
1 |
Complete mirror system right 11° angle |
|
2 |
Main mirror remote controlled left/right |
|
3 |
Glass unit heated left/right |
|
4 |
Mirror cover left/right |
|
5 |
Mirror arm 28mmØ right 11° angle |
|
6 |
Mirror arm 28mmØ right 11° angle |
|
7 |
Mounting wedge for chassis right |
|
1/2 |
Engine unit with alu plate left/right |
|
8 |
Mirror switch for 2 mirrors |
|
9 |
Cable for main mirror with 6 pole plug |

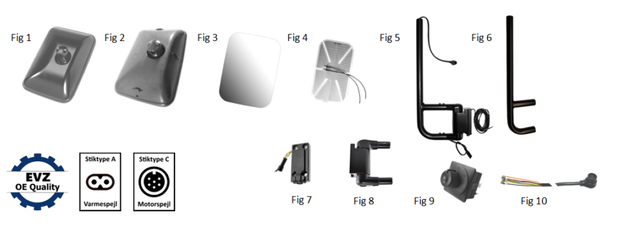

Volvo B7RLE-60 Säffle
Remote controlled mirrors, mirror arms & fittings
Fig. |
Description |
EVZ number |
Main mirror remote controlled left |
||
Main mirror remote controlled left |
||
Spare glass left/right |
||
Spare glass with heating foil left/right |
||
Heating foil 30W left/right |
||
Engine unit horisontal action |
||
Engine unit vertical action |
||
Mirror arm 28mmØ left 90° angle |
||
Mirror arm 28mmØ left |
||
Mounting wedge for chassis left/right |
||
Lower holder for 28mmØ mirror arm |
||
Mirror switch for 2 mirrors |
||
Cable for main mirror with 6 pole plug |
Volvo B7RLE - Upgrade
Complete mirror systems left & right
- Authorised solutions ready to be mounted!
Fig. |
Description |
Volt |
Plug |
Brand / Model |
EVZ number |
1 |
Complete mirror system left 90° angle |
24V |
B |
Volvo B7 RLE Scania Universal |
|
1 |
Complete mirror system left 90° angle |
24V |
C |
Volvo B7 RLE Scania Universal |
|
2 |
Complete mirror system right |
24V |
C/B |
Volvo B7 RLE Scania Universal |
Volvo B7-B12 Säffle
Complete original mirror system right
With heated wide-angle mirror R300mm
- Ready to be mounted
Fig. | Description | Plug | Brand / Model | EVZ number |
1 | Complete mirror system right | C | Volvo B7– B12 VDL Ambassador | |
1 | Complete mirror arm with mounting wedge | C | Volvo B7– B12 VDL Ambassador | |
2 | Complete wide-angle mirror heated 24V | - | Volvo B7– B12 VDL Ambassador | |
3 | Wide-angle glass unit heated 24V | - | Volvo B7– B12 VDL Ambassador | |
4 | Fitting kit for wide-angle mirror | - | Volvo B7– B12 VDL Ambassador | |
5 | Main mirror remote controlled heated 24V | C | Volvo B7– B12 VDL Ambassador | |
6 | Glass unit heated 24V | - | Volvo B7– B12 VDL Ambassador | |
7 | Mirror cover for main mirror | - | Volvo B7– B12 VDL Ambassador |
