Scania Citywide LE
05/2021>
Original LED Lamps
|
Fig. |
Description |
Volt |
Brand / Model |
EVZ number |
|
1 |
Rear position lamp LED Pos/Stop lamp left 3 pole AMP/Super Seal plug |
12/24V |
Scania Citywide 05/2021> |
|
|
1 |
Rear position lamp LED Pos/Stop lamp right 3 pole AMP/Super Seal plug |
12/24V |
Scania Citywide 05/2021> |
|
|
2 |
Rear position lamp LED indicator left 2 pole AMP/Super Seal plug |
12/24V |
Scania Citywide 05/2021> |
|
|
2 |
Rear position lamp LED indicator right 2 pole AMP/Super Seal plug |
12/24V |
Scania Citywide 05/2021> |
|
|
3 |
Rear position lamp LED Reverse/Fog left 3 pole AMP/Super Seal plug |
12/24V |
Scania Citywide 05/2021> |
|
|
3 |
Rear position lamp LED Reverse/Fog right 3 pole AMP/Super Seal plug |
12/24V |
Scania Citywide 05/2021> |
|
|
4 |
Side position indicator LED left 500mm cable with open ends |
12/24V |
Scania Citywide 05/2021> |
|
|
4 |
Side position indicator LED right 500mm cable with open ends |
12/24V |
Scania Citywide 05/2021> |
|
|
5 |
Side marker lamp LED left 250mm cable with open ends |
12/24V |
Scania Citywide 05/2021> |
|
|
5 |
Side marker lamp LED right 250mm cable with open ends |
12/24V |
Scania Citywide 05/2021> |

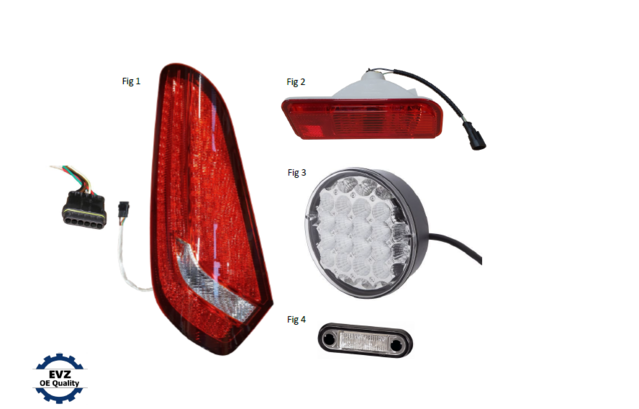

Scania Interlink / Touring
Lamps mounted on the back
|
Fig. |
Description |
Volt |
Brand
/ Model |
EVZ number |
|
1 |
Rear position lamp, LED / Incandescent lamp hybrid
LEFT LED functions:
Pos/Stop/Indicator/Marker light Bulb function:
Reversing light 6 pole SS multi plug |
24V |
Scania
Interlink Scania
Touring |
|
|
1 |
Rear position lamp, LED / Incandescent lamp hybrid RIGHT LED functions: Pos/Stop/Indicator/Marker light Bulb function: Reversing light 6
pole SS multi plug |
24V |
Scania
Interlink Scania
Touring |
|
|
2 |
Rear position fog lamp for incandescent lamp LEFT 2 pole SS
plug |
24V |
Scania
Interlink Scania
Touring |
|
|
2 |
Rear position fog lamp for incandescent lamp RIGHT 2 pole SS
plug |
24V |
Scania
Interlink Scania
Touring |
|
|
3 |
Top lamp LED POS/Stop/Indicator LEFT/RIGHT |
24V |
Scania
Interlink Scania
Touring |
|
|
4 |
Number plate light LED 2500mm cable |
24V |
Scania
Interlink Scania
Touring |
Scania 7 series 2009>
P/G/R/S
LED Rear position lamps
Figure 1:
|
Fig. |
Description |
Volt |
Brand / Model |
EVZ number |
|
1 |
LED Rear position lamp left with licence plate light |
24V |
Scania 7 series 2009> P/G/R/S |
|
|
1 |
LED Rear position lamp right with reversing warning device |
24V |
Scania 7 series 2009> P/G/R/S |
|
|
- |
Spare glass for rear position lamp, Left |
- |
Scania 7 series 2009> P/G/R/S |
|
|
- |
Spare glass for rear position lamp, Right |
- |
Scania 7 series 2009> P/G/R/S |
Scania Omni-Series
LED Rear position lamps 122mmØ
|
Fig. |
Description |
Brand / Model |
EVZ number |
|
1 |
LED Rear/Stop/Indicator 12/24V, Left/Right With cable & Scania multi plug mounted |
Scania Omni |
|
|
2 |
LED Rear/Stop/Indicator 12/24V, Left/Right With cable with open ends |
Scania Omni |
|
|
3 |
LED Rear/Stop 12/24V, Left/Right With cable & Scania 2 pole plug mounted |
Scania Omni |
|
|
4 |
LED Rear/Stop 12/24V, Left/Right With cable with open ends |
Scania Omni |
|
|
5 |
Fog rear position lamp LED 12/24V, Left/Right With cable & Scania 2 pole plug mounted |
Scania Omni |
|
|
6 |
Fog rear position lamp LED 12/24V, Left/Right With cable with open ends |
Scania Omni |
Scania Omni-Series
LED Rear position lamps 122mmØ
|
Fig. |
Description |
Brand / Model |
EVZ number |
|
1 |
Reversing lamp LED 12/24V, Left/Right With cable & Scania 2 pole plug mounted |
Scania |
|
|
2 |
Reversing lamp LED 12/24V, Left/Right With cable with open ends |
Scania |
|
|
3 |
Indicator LED 12/24V, Left/Right With cable & Scania 2 pole plug mounted |
Scania |
|
|
4 |
Indicator LED 12/24V, Left/Right With cable with open ends |
Scania |
Scania P/R series
01/2007> & 08/2013>
Vignal OE Rear position lamps
|
Fig. |
Description |
Volt |
Brand / Model |
EVZ number |
|
1 |
Rear position lamp Pos/Stop/Indicator/Reverse/Fog |
24V |
Scania P/R series 01/2007> |
|
|
1 |
Rear position lamp Pos/Stop/Indicator/Reverse/Fog |
24V |
Scania P/R series 01/2007> |
|
|
1 |
Rear position lamp Pos/Stop/Indicator/Reverse/Fog |
24V |
Scania P/R series 01/2007> |
|
|
1 |
Rear position lamp Pos/Stop/Indicator/Reverse/Fog |
24V |
Scania P/R series 01/2007> |
|
|
2 |
Rear position lamp Pos/Stop/Indicator/Reverse/Fog |
24V |
Scania P/R series 08/2013> |
|
|
2 |
Rear position lamp Pos/Stop/Indicator/Reverse/Fog |
24V |
Scania P/R series 08/2013> |
|
|
2 |
Rear position lamp Pos/Stop/Indicator/Reverse/Fog |
24V |
Scania P/R series 08/2013> |
|
|
1/2 |
Spare glass for rear position lamp, Left |
- |
Scania P/R series 01/2007> / 08/2013> |
|
|
1/2 |
Spare glass for rear position lamp, Right |
- |
Scania P/R series 01/2007> / 08/2013> |
|
|
3 |
Reversing warning device |
24V |
Scania P/R series 01/2007> / 08/2013> |
Scania
LED Rear position lamps & decor
Fig. | Description | Volt | Brand / Model | EVZ number |
1 | Rear position lamps, LED, red/clear optics | 24V | Scania / Irizar I6 | |
1 | Rear position lamps, LED, red/clear optics | 24V | Scania / Irizar I6 | |
2 | Rear position lamps, LED, red optics LED functions: | 24V | Scania / Irizar I6S & I8 | |
2 | Rear position lamps, LED, red optics LED functions: | 24V | Scania / Irizar I6S & I8 | |
3 | Decor, Left | - | Scania / Irizar I6-I6S | |
3 | Decor, Right | - | Scania / Irizar I6-I6S | |
4 | Decor, Left | - | Scania / Irizar I8 | |
4 | Decor, Right | - | Scania / Irizar I8 |
