Setra S400 & S500 series

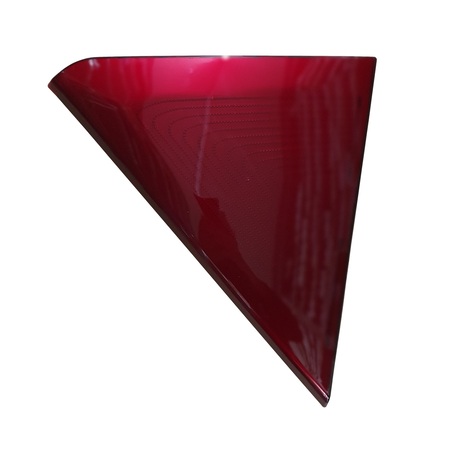

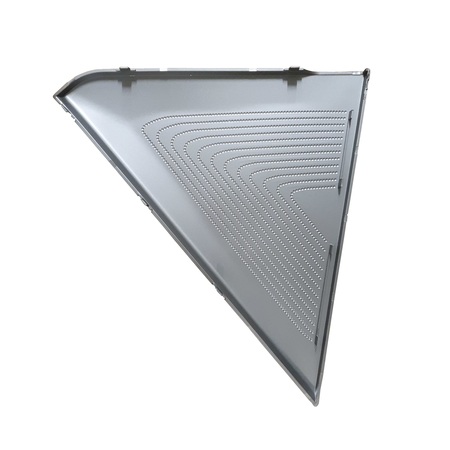

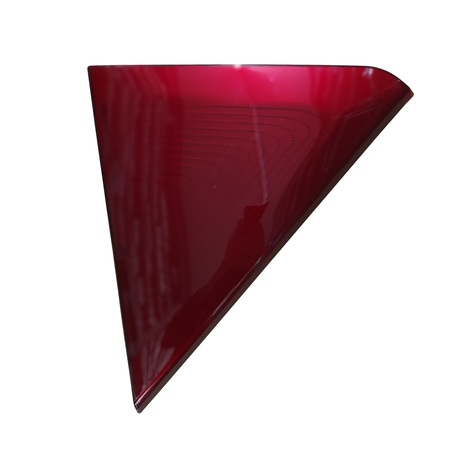

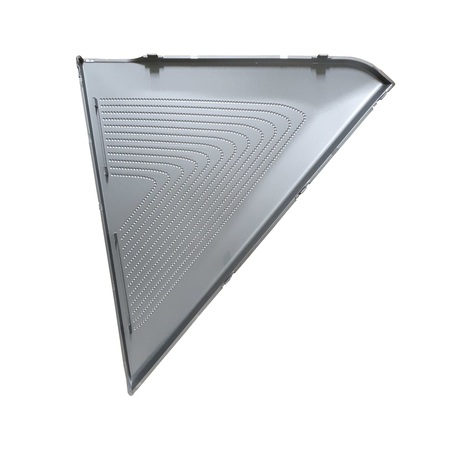

Rear position lamps
Fig. | Description | Volt | Brand / Model | EVZ number |
1 | Rear position lamps for incandescent lamps Left | - | MB Intouro Setra S400 series | |
1 | Rear position lamps for incandescent lamps Right | - | MB Citaro Setra S400 series | |
2 | Rear position lamps "OE" for incandescent lamps Left | - | Setra S400 series | |
2 | Rear position lamps "OE" for incandescent lamps Right | - | Setra S400 series | |
3 | Rear position lamp LED, Left Pos/Stop/Indicator/Reverse/Fog | - | Setra S500 series | |
3 | Rear position lamp LED, Right Pos/Stop/Indicator/Reverse/Fog | - | Setra S500 series | |
4 | Rear position lamp for incandescent lamp Left/Right | - | Setra S500 series | |
5 | Socket for incandescent lamp (Not for indicator) | - | MB Intouro Setra S400 series | |
6 | 2 pole JPT plug | - | MB Citaro Setra S400 series |
Setra
Rear position lamps
Fig. | Description | Volt | Brand / Model | EVZ number |
1 | Rear position lamp. complete left Functions: Pos/Stop/Indicator/Reverse | 24V | MB O300 / O400 Setra 200/300 series Volvo B7RLE Carrus | |
1 | Rear position lamp. complete right | 24V | MB O300 / O400 Setra 200/300 series Volvo B7RLE Carrus | |
2 | Socket for incandescent lamp Connection for 2 pole JPT plug | - | MB O300 / O400 Setra 200/300 series Volvo B7RLE Carrus | |
3 | 2 pole JPT plug | - | MB O300 / O400 Setra 200/300 series Volvo B7RLE Carrus |
Setra S415LE
Lights on the back
|
Fig. |
Description |
Volt |
Brand / Model |
EVZ number |
|
1 |
Rear position lamp for incandescent lamp |
24V |
Setra S415LE |
|
|
1 |
Rear position lamp for incandescent lamp |
24V |
Setra S415LE |
|
|
2 |
Top light Pos/Stop LEFT/RIGHT 3 Pole AMP-JPT plug for
connection |
24V |
Setra S415LE |
|
|
3 |
Top light indicator LEFT/RIGHT 2 Pole AMP-JPT plug for
connection |
24V |
Setra S415LE |
|
|
4 |
LED licence plate light |
12/24V |
Setra S415LE |
