Mirror systems

Fig.

Description

Volt

Plug

Brand / Model

EVZ number

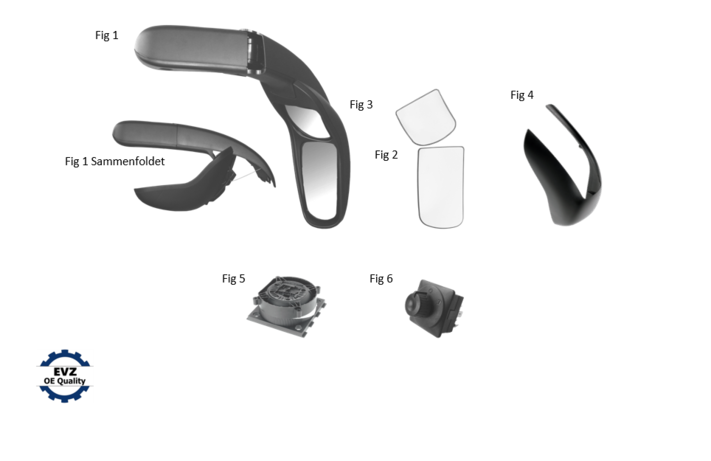

1

Complete mirror system heated left

Electrically adjustable side-view mirror
Manually adjustable wide-angle mirror

24V

-

Golden Dragon
E12 C

EP 3700010

 2

Glass unit heated left

Convex R1200
307x177x22mm

24V

-

Golden Dragon
E12 C

EP 3730000

3

Wide-angle glass unit heated left

Extremely convex R300
177x177x34mm

24V

-

Golden Dragon
E12 C

EP 3730010

4

Mirror cover left

-

-

Golden Dragon
E12 C

EP 3760000

5

Engine unit left/right

24V

-

Golden Dragon
E12 C

EP 3760030

6

Mounting wedge for chassis

Built-in plug with 350cm cable

-

-

Golden Dragon
E12 C

EP 3760040

7

Mirror switch for 2 mirrors

-

-

Golden Dragon
E12 C

EP 8761090

Fig.

Description

Volt

Plug

Brand / Model

EVZ number

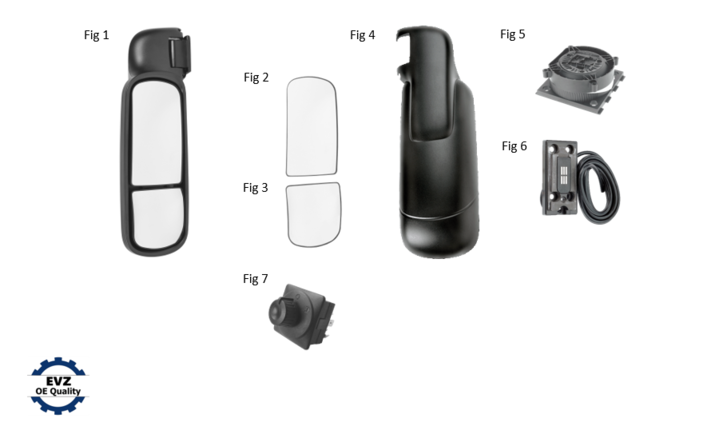

1

Complete mirror system heated right
Electrically adjustable side-view mirror
Manually adjustable wide-angle mirror
Manually retractable side-view mirror

24V

-

Golden Dragon
E12 C

EP 3700110

 2

Glass unit heated right

Convex R1200
307x183x23mm

24V

-

Golden Dragon
E12 C

EP 3730100

3

Wide-angle glass unit heated right

Extremely convex R300
206x166x37mm

24V

-

Golden Dragon
E12 C

EP 3730110

4

Mirror cover right

-

-

Golden Dragon
E12 C

EP 3760100

5

Engine unit left/right

24V

-

Golden Dragon
E12 C

EP 3760030

6

Mirror switch for 2 mirrors

-

-

Golden Dragon
E12 C

EP 8761090

Fig.

Description

Volt

Plug

Brand/ Model

EVZ number

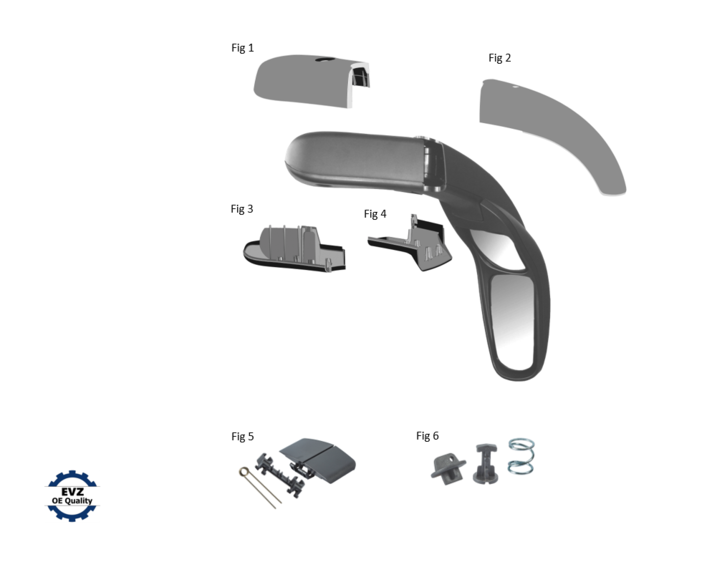

1

Cover for mirror arm

Rear/Upper

-

-

Golden Dragon
E12 C

EP 3760170

2

Cover for mirror arm

Front/Upper

-

-

Golden Dragon
E12 C

EP 3760150

3

Cover for mirror arm

Rear/Lower

-

-

Golden Dragon
E12 C

EP 3760180

4

Cover for mirror arm

Front/Lower

-

-

Golden Dragon
E12 C

EP 3760160

5

Hinge kit with fitting and lock spring

-

-

Golden Dragon
E12 C

EP 3760140

6

Adjusting wrench kit with nut and spring

-

-

Golden Dragon
E12 C

EP 3760190

Fig.

Description

Volt

Plug

Brand / Model

EVZ number

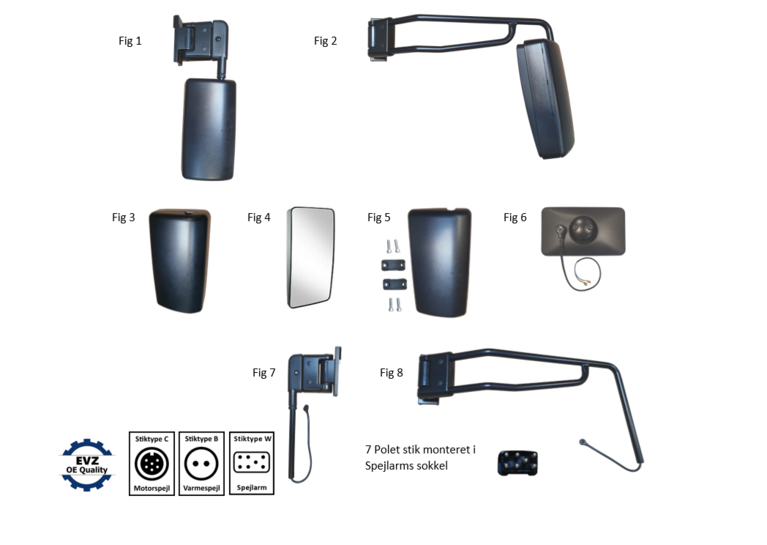

1

Complete mirror system heated left

Electrically adjustable side-view mirror

24V

W/C

Golden Dragon E12

12/2021>

EP 4700100

2

Complete mirror system heated right

Electrically adjustable side-view mirror

24V

W/C

Golden Dragon E12

12/2021>

EP 4700110

3

Main mirror heated left/right

Complete with mountings and cover

24V

C

Golden Dragon E12

12/2021>

EP 5712370

 4

Glass unit heated left/right

for side-view mirror convex

24V

-

Golden Dragon E12

12/2021>

EP 5732370

 5

Mirror cover for main mirror left/right
with fittings, mountings and screws

-

-

Golden Dragon E12

12/2021>

EP 5762300

6

Wide-angle mirror heated right
Mounting for 18-22mmØ

24V

B

Golden Dragon E12

12/2021>

EP 4720100

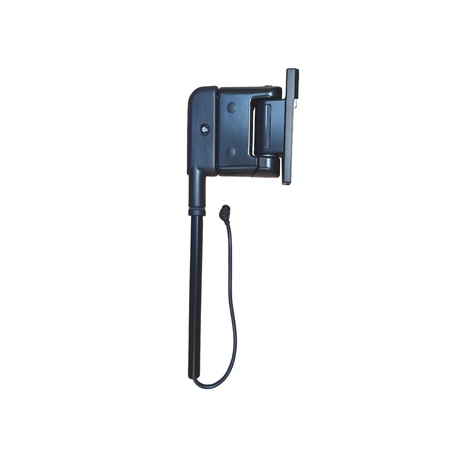

7

Mirror arm for main mirror left

with cable for main mirror

-

W/C

Golden Dragon E12

12/2021>

EP 4750100

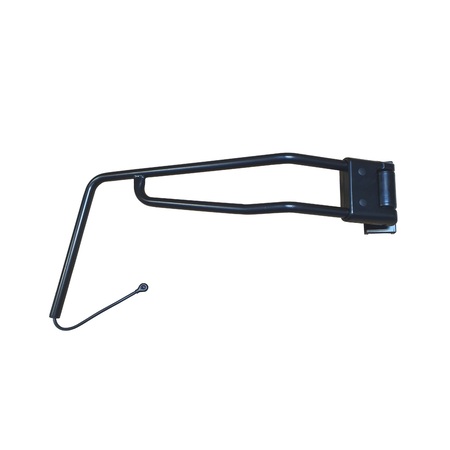

8

Mirror arm for main mirror right
with cable for main mirror

-

W/C

Golden Dragon E12

12/2021>

EP 4750110
