Scania Citywide LE Gas bus
Scania Omnilink / Omniline
Complete original mirror system right
With wide-angle mirror radius 300mm
- Ready to be mounted!

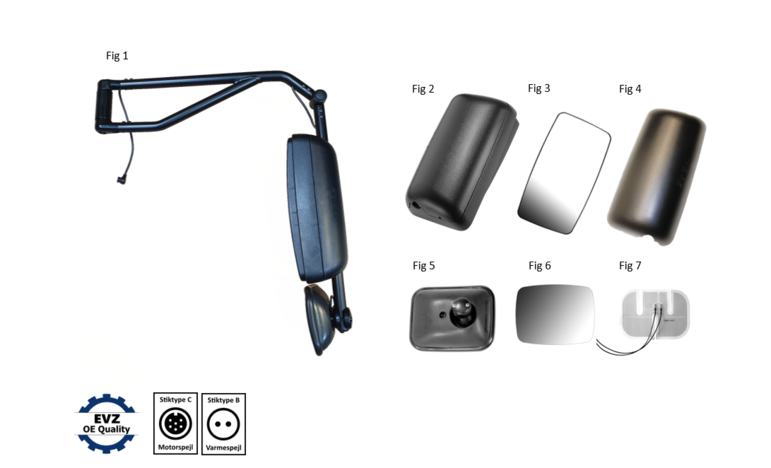

Fig. |
Description |
Plug |
Brand / Model |
EVZ number |
1 |
Complete mirror system right Remote controlled side-view mirror heated 24V |
C |
Scania Citywide LE Scania Omnilink Scania Omniline |
|
2 |
Main mirror remote controlled heated 24V |
C |
Scania |
|
3 |
Glass unit heated 24V |
C |
Scania |
|
4 |
Mirror cover for main mirror |
- |
Scania |
|
5 |
Wide-angle mirror heated 24V |
B |
Scania |
|
6 |
Wide-angle spare glass R300 200x152x3mm |
- |
Scania |
|
7 |
Heating foil for wide-angle mirror glass |
- |
Scania |
Scania Interlink / OmniExpress
Mirrors, mirror arms & fittings, right side
Fig. |
Description |
Volt |
Plug |
Brand / Model |
EVZ number |
1 |
Complete mirror system right Remote controlled side-view mirror heated |
24V |
C/B |
Scania OmniExpress Scania Interlink |
|
2 |
Main mirror, remote controlled, right(left) |
24V |
C |
Scania OmniExpress Scania Interlink |
|
3 |
Glass unit heated 368x189x40mm |
24V |
- |
Scania OmniExpress Scania Interlink |
|
4 |
Mirror cover 367x187x60mm |
- |
- |
Scania OmniExpress Scania Interlink |
|
5 |
Mirror arm 28mmØ right with lower holder and mounting wedge |
- |
C/B |
Scania OmniExpress Scania Interlink |
|
6 |
Mounting wedge for chassis |
- |
C |
Scania OmniExpress Scania Interlink |
|
7 |
Lower holder with wedge (HD) |
- |
- |
Scania Omni / Inter |
|
1/2 |
Engine unit with alu plate |
24V |
- |
Scania Omni / Inter |
|
8 |
Mirror switch for 2 mirrors |
- |
- |
Scania Omni / Inter |
|
9 |
Cable for main mirror with 6 pole plug |
- |
C |
Scania Omni / Inter |
Scania Interlink / OmniExpress
Wide-angle mirror & fittings, right side

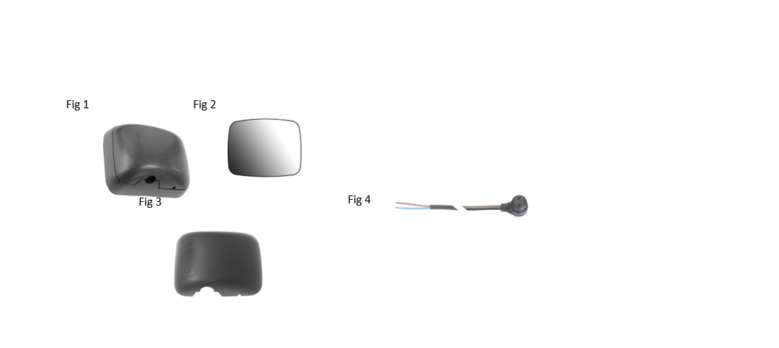

Fig. |
Description |
Volt |
Plug |
Brand / Model |
EVZ number |
1 |
Wide-angle mirror heated |
24V |
B |
Scania OmniExpress Scania Interlink |
|
1 |
Wide-angle mirror heated |
24V |
B |
Scania OmniExpress Scania Interlink |
|
2 |
Glass unit heated left/right Strongly convex R400 |
24V |
- |
Scania OmniExpress Scania Interlink |
|
2 |
Glass unit heated left/right Extremely convex R300 |
24V |
- |
Scania OmniExpress Scania Interlink |
|
3 |
Mirror cover 203x154x60mm |
- |
- |
Scania OmniExpress Scania Interlink |
|
4 |
Cable for heating mirror with 2 pole plug 2000mm length with open ends |
- |
B |
Scania OmniExpress Scania Interlink |
Scania

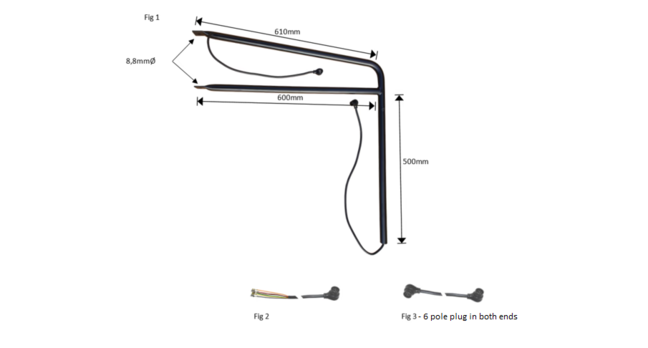

Right mirror arm 22mmØ old version
Fig. |
Description |
Plug |
Brand / Model |
EVZ number |
1 |
Mirror arm 22mmØ, right |
C |
Scania & Volvo |
|
2 |
Cable for main mirror with 6 pole plug 2000mm length with flat plug |
C |
Scania & Volvo |
|
3 |
Cable for main mirror with 2x6 pole plug |
C/C |
Scania & Volvo |

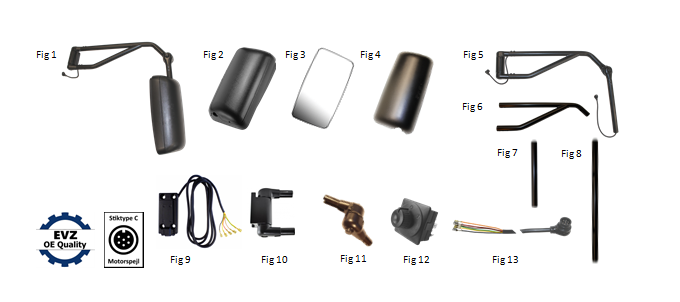

Fig. |
Description |
EVZ number |
1 |
Complete mirror system right |
|
2 |
Main mirror,
remote controlled, right(left) |
|
3 |
Glass unit heated |
|
4 |
Mirror cover |
|
5 |
Mirror arm 28mmØ right |
|
6 |
Mirror arm 28mmØ right |
|
7 |
Vertical mirror arm 356mm |
|
8 |
Vertical
mirror arm 560mm (Wide-angle mirror) |
|
9 |
Mounting wedge for chassis |
|
8 |
Lower holder with wedge |
|
11 |
Hinge |
|
1/2 |
Engine unit with alu plate |
|
12 |
Mirror switch for 2 mirrors |
|
13 |
Cable for main mirror with 6 pole plug |
