Solaris Urbino
Mirror systems with double plate glass
Right side, pendant mounting
|
Fig. |
Description |
Volt |
Plug |
Brand
/ Model |
EVZ number |
|
1 |
Complete mirror system heated right Remote controlled side-view mirror |
24V |
10P |
Solaris Urbino |
|
|
2 |
Complete mirror head heated right Remote controlled side-view mirror |
24V |
- |
Solaris Urbino |
|
|
3 |
Wide-angle glass unit heated right |
24V |
- |
Solaris Urbino |
|
|
4 |
Glass unit heated right Convex R1350 (Side-view mirror) |
24V |
- |
Solaris Urbino |
|
|
1 |
Mirror arm with cables right |
- |
10P |
Solaris Urbino |
|
|
5 |
Mounting wedge for chassis right with 10 pole cable |
- |
10P |
Solaris Urbino |
|
|
6 |
10 pole cable for mirror arm right |
- |
10P |
Solaris Urbino |
Solaris Urbino
Mirror systems with singular plate glass
Left side, up right mounting
|
Fig. |
Description |
Volt |
Plug |
Brand / Model |
EVZ number |
|
1 |
Complete mirror system heated left |
24V |
5P |
Solaris Urbino |
|
|
2 |
omplete mirror head heated left |
24V |
- |
Solaris Urbino |
|
|
3 |
Glass unit heated left Convex R1350 |
24V |
- |
Solaris Urbino |
|
|
1 |
Mirror arm with cables left |
- |
5P |
Solaris Urbino |
|
|
4 |
Mounting wedge for chassis left |
- |
5P |
Solaris Urbino |
|
|
5 |
5 pole cable for mirror arm left |
- |
5P |
Solaris Urbino |
Solaris Urbino
Mirror systems with singular plate glass
left side, pendant mounting
|
Fig. |
Description |
Volt |
Plug |
Brand / Model |
EVZ number |
|
1 |
Complete mirror system heated left |
24V |
5P |
Solaris Urbino |
|
|
2 |
Complete mirror head heated left/right |
24V |
- |
Solaris Urbino |
|
|
3 |
Glass unit heated left/right Convex R1350 |
24V |
- |
Solaris Urbino |
|
|
1 |
Mirror arm with cables left |
- |
5P |
Solaris Urbino |
|
|
4 |
Mounting wedge for chassis left/right |
- |
5P |
Solaris Urbino |
|
|
5 |
5 pole cable for mirror arm left/right |
- |
5P |
Solaris Urbino |
Solaris Urbino
Mirror systems with singular plate glass
right side, pendant mounting
|
Fig. |
Description |
Volt |
Plug |
Brand / Model |
EVZ number |
|
1 |
Complete mirror system heated right |
24V |
5P |
Solaris Urbino |
|
|
2 |
Complete mirror head heated left/right Remote controlled side-view mirror |
24V |
- |
Solaris Urbino |
|
|
3 |
Glass unit heated left/right |
24V |
- |
Solaris Urbino |
|
|
4 |
Mounting wedge for chassis left/right |
- |
5P |
Solaris Urbino |
|
|
5 |
5 pole cable for mirror arm left/right with plug 1620mm |
- |
5P |
Solaris Urbino |
Fig | Description | EVZ number |
1 | Complete mirror system heated, left | |
2 | Complete mirror system heated, left | |
3 | Glass unit heated, left | |
4 | Wide-angle glass unit heated, left | |
5 | Mirror cover, left + mirror cover, right | |
1/2 | Mirror cabinet, left | |
6 | Engine unit, left/right | |
1/2 | Mounting wedge for chassis | |
7 | Mirror switch for 2 mirrors |
Fig. | Description | EVZ number |
1 | Complete mirror system heated, right | |
1 | Complete mirror system heated, right | |
1 | Complete mirror system heated, right | |
1 | Complete mirror system heated, right | |
2 | Glass unit heated, right | |
3 | Wide-angle glass unit heated | |
4 | Mirror cover, right | |
1 | Incandescent lamp 10W | |
1 | Cover for interior lamp |
Fig. | Description | EVZ number |
1 | Mirror cabinet, right | |
1 | Mirror cabinet, right | |
1 | Mirror cabinet, right | |
2 | Cover for mirror arm | |
3 | Cover for mirror arm | |
4 | Cover for mirror arm | |
5 | Cover for mirror arm |

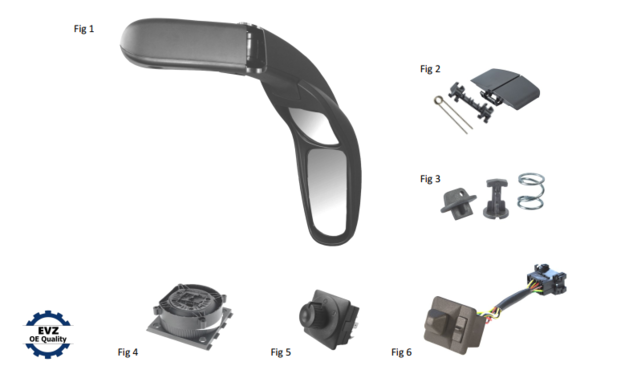

Fig. | Description | EVZ number |
1 | Inward mirror arm, right | |
1 | Inward mirror arm, right | |
2 | Hinge kit with fitting | |
3 | Adjusting wrench kit with nut and spring | |
4 | Engine unit, left/right | |
5 | Mirror switch for 2 mirrors | |
6 | Mirror switch for 3 mirrors |
