Volvo

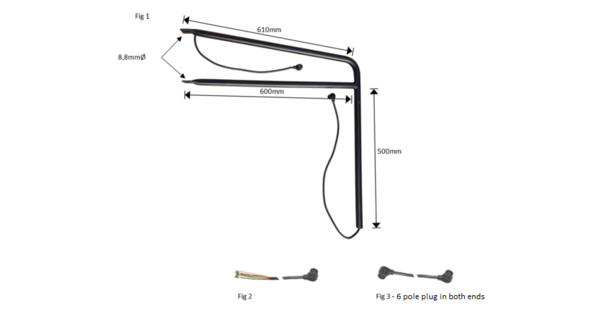

Mirror arm 22mmØ old version
|
Fig. |
Description |
Plug |
Brand / Model |
EVZ number |
|
1 |
Mirror arm 22mmØ right |
C |
Scania & Volvo |
|
|
2 |
Cable for main mirror with 6 pole plug 2000mm length with flat plug |
C |
Scania & Volvo |
|
|
3 |
Cable for main mirror with 2x6 pole plug |
C/C |
Scania & Volvo |
Volvo B7RLE-60 Säffle
Mirror arms & fittings
|
Fig. |
Description |
EVZ number |
|
Mirror arm 28mmØ, left |
||
|
Mirror arm 28mmØ, right |
||
|
Mirror arm 28mmØ, right |
||
|
Mirror arm 28mmØ, right |
||
|
Hinge for mirror arm 28mmØ, right |
||
|
Lower holder for 28mmØ mirror arms |
||
|
Mounting wedge for chassis left |
||
|
Mounting wedge for chassis right |
||
|
Mounting wedge for chassis left/right |
Volvo B7RLE-60 Säffle
Mirror arms
|
Fig. |
Description |
EVZ number |
|
Mirror arm 28mmØ right 11° angle |
||
|
Mirror arm 28mmØ right 11° angle |
||
|
Mounting wedge for chassis right |
||
|
Mounting wedge for chassis left/right |
||
|
Lower holder for 28mmØ mirror arms |
||
|
Cable for heating mirror with 2 pole plug |
||
|
Cable for heating mirror with 6 pole plug |
Volvo B12BLE-62 Säffle
Mirrors, mirror arms & fittings
|
Fig. |
Description |
EVZ number |
|
1 |
Complete mirror system left 60°
angle |
|
|
2 |
Main mirror remote controlled left/right |
|
|
Glass unit left/right |
||
|
Mirror cover left/right |
||
|
Mirror arm 28mmØ left |
||
|
Mirror arm 28mmØ left |
||
|
Mounting wedge for chassis left |
||
|
Engine unit with alu plate left/right |
||
|
Mirror switch for 2 mirrors |
||
|
Cable for main mirror with 6 pole plug |
Volvo B-series
Fittings for mirrors and mirror arms
|
Fig. |
Description |
Volt |
Plug |
EVZ number |
|
Cable for
heating mirror with 2 pole plug |
A |
|||
|
Cable for
heating mirror with 2 pole plug |
B |
|||
|
Cable for
heating mirror with 6 pole plug |
C |
|||
|
Cable for
mirror arm with 2 pole plug |
A |
|||
|
Mounting wedge
for chassis left |
A |
|||
|
Mounting wedge
for chassis left/right |
C |
|||
|
Mounting wedge
for chassis left/right |
C |
|||
|
Mounting wedge
for chassis left/right |
||||
|
Lower holder
for 28mmØ mirror arms |
||||
|
Mirror switch for 2 mirrors |
||||
|
Mirror switch for 3 mirrors |

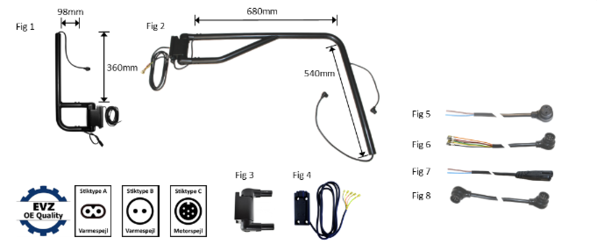

Volvo - Upgrade
Mirror arms 28mmØ
- Authorised solutions ready to be mounted!
|
Fig. |
Description |
Volt |
Plug |
Brand / Model |
EVZ number |
|
1 |
Mirror arm 28mmØ left 90° angle |
- |
B |
Volvo B7 RLE Scania Universal |
|
|
1 |
Mirror arm 28mmØ left 90° angle |
- |
C |
Volvo B7 RLE Scania Universal |
|
|
2 |
Mirror arm 28mmØ right |
- |
C/B |
Volvo B7 RLE Scania Universal |
|
|
2 |
Mirror arm 28mmØ right |
- |
C/B |
Volvo B7 RLE Scania Universal |
|
|
3 |
Lower holder for 28mmØ mirror arms |
- |
- |
Volvo B7 RLE Scania Universal |
|
|
4 |
Mounting wedge for chassis 2 pole plug and 2500mm cable |
- |
A |
Volvo B7 RLE Scania Universal |
|
|
4 |
Mounting wedge for chassis 6 pole plug and 2000mm cable |
- |
C |
Volvo B7 RLE Scania Universal |
|
|
5 |
Cable for heating mirror with 2 pole plug 2000mm legnth with open ends |
- |
B |
Volvo B7 RLE Scania Universal |
|
|
6 |
Cable for main mirror with 6 pole plug 2000mm length with flat plug |
- |
C |
Volvo B7 RLE Scania Universal |
|
|
7 |
Cable for mirror arm with 2 pole plug |
- |
A |
Volvo B7 RLE Scania Universal |
|
|
8 |
Cable for main mirror with 2x6 pole plug |
- |
C/C |
Volvo B7 RLE Scania Universal |
