90° Elbow - Green OAT

Green OAT Silicone Hose Elbows 90°

With black Fluorosilicone inner lining

Certified operating temperatures from -50°C to +230°C

SAE J20R1 Class A Certified

Tolerates OAT (Orange/Red) coolant fluids with anti-corrosion additives

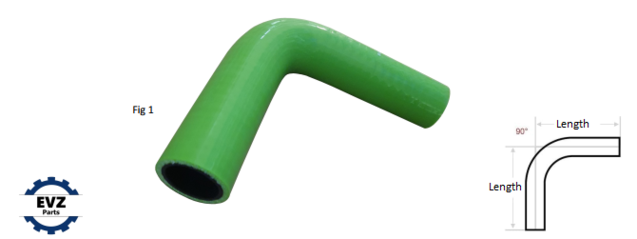

Fig.	Description	Inner Ø	Length	Layers	Max Pressure	EVZ number
1	Green OAT Silicone Hose Elbow 90°	10 MM	152/152 MM	4	33,8 Bar	EP 9610906
1	Green OAT Silicone Hose Elbow 90°	13 MM	152/152 MM	4	29,0 Bar	EP 9613908
1	Green OAT Silicone Hose Elbow 90°	16 MM	152/152 MM	4	28,2 Bar	EP 9616910
1	Green OAT Silicone Hose Elbow 90°	19 MM	152/152 MM	4	27,4 Bar	EP 9619912
1	Green OAT Silicone Hose Elbow 90°	22 MM	152/152 MM	4	26,0 Bar	EP 9622914
1	Green OAT Silicone Hose Elbow 90°	25 MM	152/152 MM	4	25,2 Bar	EP 9625916
1	Green OAT Silicone Hose Elbow 90°	28 MM	152/152 MM	4	24,8 Bar	EP 9628918
1	Green OAT Silicone Hose Elbow 90°	31 MM	152/152 MM	4	24,0 Bar	EP 9631920
1	Green OAT Silicone Hose Elbow 90°	35 MM	152/152 MM	4	22,5 Bar	EP 9635922
1	Green OAT Silicone Hose Elbow 90°	35 MM	250/250 MM	4	22,5 Bar	EP 9635622
1	Green OAT Silicone Hose Elbow 90°	38 MM	152/152 MM	4	21,6 Bar	EP 9638924
1	Green OAT Silicone Hose Elbow 90°	38 MM	250/250 MM	4	21,6 Bar	EP 9638524
1	Green OAT Silicone Hose Elbow 90°	41 MM	152/152 MM	4	20,5 Bar	EP 9641926
1	Green OAT Silicone Hose Elbow 90°	41 MM	250/250 MM	4	20,5 Bar	EP 9641616
1	Green OAT Silicone Hose Elbow 90°	45 MM	152/152 MM	4	19,6 Bar	EP 9645928
1	Green OAT Silicone Hose Elbow 90°	48 MM	152/152 MM	4	19,1 Bar	EP 9648930
1	Green OAT Silicone Hose Elbow 90°	51 MM	152/152 MM	4	18,8 Bar	EP 9651932
1	Green OAT Silicone Hose Elbow 90°	51 MM	250/250 MM	4	18,8 Bar	EP 9651632
1	Green OAT Silicone Hose Elbow 90°	54 MM	152/152 MM	4	17,5 Bar	EP 9654934
1	Green OAT Silicone Hose Elbow 90°	57 MM	152/152 MM	4	16,5 Bar	EP 9657936
1	Green OAT Silicone Hose Elbow 90°	60 MM	152/152 MM	4	15,5 Bar	EP 9660938
1	Green OAT Silicone Hose Elbow 90°	63 MM	152/152 MM	4	14,8 Bar	EP 9663940
1	Green OAT Silicone Hose Elbow 90°	70 MM	152/152 MM	4	13,8 Bar	EP 9670944
