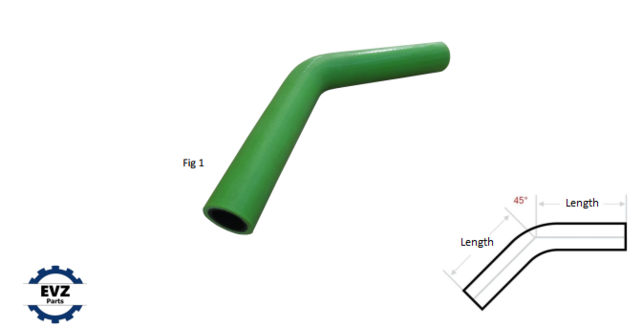

45° Silicone Elbow OAT - Green
Green OAT Silicone Hose Elbow 45°
With black Fluorosilicone inner lining
Certified operating temperatures from -50°C to+230°C
SAE J20R1 Class A Certified
Tolerates OAT (Orange/Red) coolant fluids with anti-corrosion additives
|
Fig. |
Description |
Inner Ø |
Length |
Layers |
Max Pressure |
EVZ number |
|
1 |
Green OAT Bending Silicone Hose 45° |
10 MM |
152/152 MM |
4 |
33,8 Bar |
|
|
1 |
Green OAT Bending Silicone Hose 45° |
13 MM |
152/152 MM |
4 |
29,0 Bar |
|
|
1 |
Green OAT Bending Silicone Hose 45° |
16 MM |
152/152 MM |
4 |
28,2 Bar |
|
|
1 |
Green OAT Bending Silicone Hose 45° |
19 MM |
152/152 MM |
4 |
27,4 Bar |
|
|
1 |
Green OAT Bending Silicone Hose 45° |
22 MM |
152/152 MM |
4 |
26,0 Bar |
|
|
1 |
Green OAT Bending Silicone Hose 45° |
25 MM |
152/152 MM |
4 |
25,2 Bar |
|
|
1 |
Green OAT Bending Silicone Hose 45° |
28 MM |
152/152 MM |
4 |
24,8 Bar |
|
|
1 |
Green OAT Bending Silicone Hose 45° |
31 MM |
152/152 MM |
4 |
24,0 Bar |
|
|
1 |
Green OAT Bending Silicone Hose 45° |
35 MM |
152/152 MM |
4 |
22,5 Bar |
|
|
1 |
Green OAT Bending Silicone Hose 45° |
38 MM |
152/152 MM |
4 |
21,6 Bar |
|
|
1 |
Green OAT Bending Silicone Hose 45° |
41 MM |
152/152 MM |
4 |
20,5 Bar |
|
|
1 |
Green OAT Bending Silicone Hose 45° |
45 MM |
152/152 MM |
4 |
19,6 Bar |
|
|
1 |
Green OAT Bending Silicone Hose 45° |
48 MM |
152/152 MM |
4 |
19,1 Bar |
|
|
1 |
Green OAT Bending Silicone Hose 45° |
51 MM |
152/152 MM |
4 |
18,8 Bar |
|
|
1 |
Green OAT Bending Silicone Hose 45° |
54 MM |
152/152 MM |
4 |
17,5 Bar |
|
|
1 |
Green OAT Bending Silicone Hose 45° |
57 MM |
152/152 MM |
4 |
16,5 Bar |
|
|
1 |
Green OAT Bending Silicone Hose 45° |
60 MM |
152/152 MM |
4 |
15,5 Bar |
|
|
1 |
Green OAT Bending Silicone Hose 45° |
63 MM |
152/152 MM |
4 |
14,8 Bar |
|
|
1 |
Green OAT Bending Silicone Hose 45° |
70 MM |
152/152 MM |
4 |
13,8 Bar |
Indv. Ø
Type
